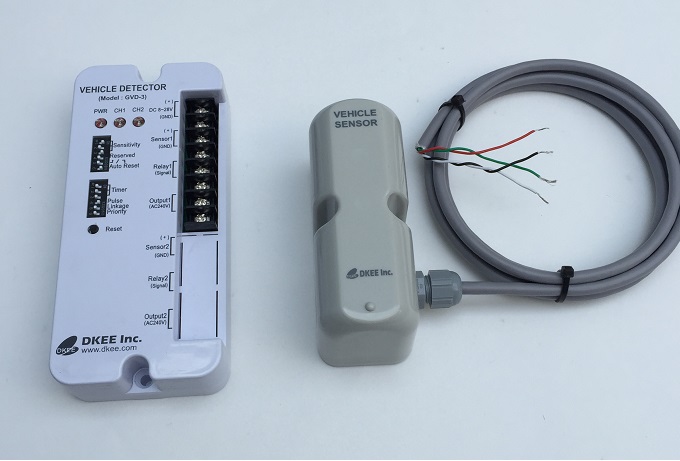

[ Loop coil-free vehicle detector – 1channel ]

  • Existing vehicle detector is difficult to install because it’s necessary to install the loop coil in the road.
  • So, to solve this problem, we’ve developed an innovative vehicle detector that it’s not necessary loop coil to detect vehicles.
  • And it could detect various metal objects such as vehicle, lift car, metal and cart by geomagnetic technology.
  • For example, when a moving vehicle detected by the geomagnetic sensor, it can work a safety facility to notify to pedestrians.
  • Furthermore you can adjust the sensitivity of the loop detector and the timer time.
  • Also the vehicle detector provides two outputs that controls an alarm light and a dry relay contact.
  • But the vehicle detection is recommended to be used within 2 meters from the sensor to the side of the vehicle for now.
  • And the sensor can sense front and rear, so it is necessary to determine whether the vehicle is parked behind the sensor or passing through.
  • For your information, we are developing a new detector that can be detected vehicles with more long ranges and much improved functions.
Loop coil-free vehicle detector 1 channel
Play Video about Loop coil-free vehicle detector 1 channel
Loop coil-free vehicle detector - 2 channels

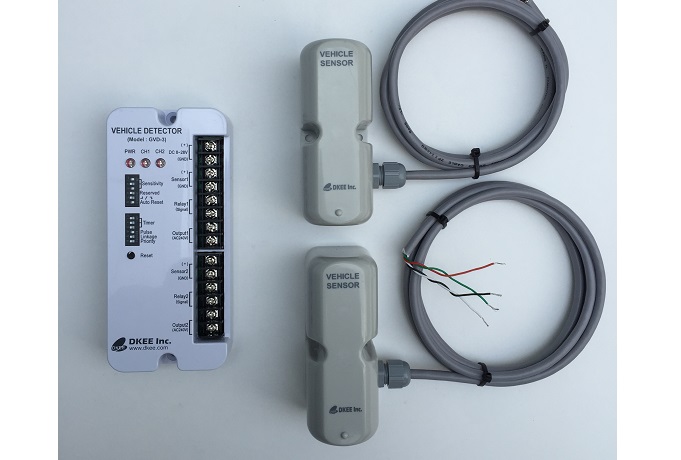

[ Loop coil-free vehicle detector - 2 channels ]

  • The two channel vehicle detector can be additionally provided a priority detection and a direction distinction function.
  • So the vehicle detector provides two outputs that controls an alarm light and a dry contact.
  • And then it could detect various metal objects such as vehicle, lift car, metal and cart by geomagnetic technology.
  • So, if a vehicle is detected by the sensor, it can work a safety facility to notify to pedestrians.
  • But the vehicle detection is recommended to be used within 2meters from the sensor to the side of the vehicle.
  • And then it controls an output to control the warning light when it detects a vehicle.
  • Also the sensor can detect front and rear, so it’s necessary to determine whether the vehicle is parked behind the sensor or passing through.
  • You can adjust the sensitivity of the loop detector and the timer time.

[ Loop coil-free vehicle detector – 1 channel assembled ]

  • Since the circuit configuration of the vehicle detector is supplied in a waterproof plastic enclosure, customers can easily install and wire it.
  • But the vehicle detection is recommended to be used within 2 meters form the sensor to the side of the vehicle.
  • So it could detect various metal objects such as vehicle, lift car, metal and cart by geomagnetic technology.
  • And then if a vehicle is detected by the geomagnetic detector, it can work a safety facility to notify to pedestrians.
  • That’s why, the geomagnetic sensor can detect only vehicles or metal objects, and it is not necessary to install the loop coil in the road..
  • Also the vehicle detector provides one output that controls an alarm light and a dry relay contact.
  • But the detector can detect front and rear, so it is necessary to determine whether the vehicle is parked behind the sensor or passing through.

[ Loop coil-free vehicle detector - 2 channels assembled ]

  • The vehicle detector is provided in a waterproof plastic enclosure for easy installation and wiring by the customer.
  • So the geomagnetic detector can detect only vehicle or metal objects, and it is not necessary to install the loop coil i the road.
  • Also the two channel detector can be additionally provided with a priority detection and a direction distinction function.
  • That’s why, we’ve developed an innovative vehicle detector that it’s not necessary loop coils to detect vehicles.
  • So it could detect various metal objects such as vehicle, lift car, metal and cart by geomagnetic detector.
  • Therefore if a vehicle is detected by the geomagnetic detector, it can work a safety facility to notify to pedestrians.
  • However the vehicle detection is recommended to be used within 2meters from the sensor to the side of the vehicle.
  • But the loop coil detector is difficult to install because it’s necessary to install the loop coil in the road.

[ Power supply ]

  • Input power : AC 220V
  • Output power : DC12V

[ Warning lamp for stand type ]

  • The warning light installed at the exit of the parking lot as a self-supporting type.
  • So it uses to prevent accidents by notifying pedestrians or other drivers of the process of the vehicle exiting in advance.
  • And the warning light operates with AC 220V.
  • Therefore if the vehicle detector detects the vehicle exiting, the warning light activates.
  • And the warning light composes a buzzer warning light and a signage with back light.
  • And the dimension is 130(W) x 1300(H)

[ Warning light for wall mounted type ]

  • It installs the warning light on the inside or outside wall of the parking lot.
  • So it cab be used as a safety signal for pedestrians or drivers by notifying the direction of vehicle approach in advance.
  • When the vehicle detector detects a vehicle, the warning light and alarm sound activates.
  • The alarm sound is up to 90db and the volume can reduce by a volume knob.
  • Also the warning light operates with AC 220V.

[ Warning light for ceiling type ]

  • It installs the warning light on the ceiling in the parking lot.
  • Also it can be used for the purpose of notifying the direction of the passing vehicle in advance so that pedestrians or drivers can respond.
  • So it uses as a safety signal for pedestrians or drivers by notifying the direction of vehicle approach in advance.
  • When the vehicle detector detects a vehicle, the warning light and alarm sound activates.

[ Sensor braket ]

  • Install the bracket on the wall or ceiling and assemble the vehicle sensor to the bracket.
  • By adjusting the angle of the bracket, the detection angle of the vehicle sensor can adjust.
  • So the detection of the vehicle sensor forms in an oval shape in both the front and rear.
  • Caution: If the direction of vehicle travel and the direction of the sensor are not at right angles using the sensor bracket, the sensing distance will reduced.

[ Sensor pole ]

  • You can use the sensor pole when you want to install the sensor at a certain height when there is no wall in the vehicle passageway.
  • So if the sensor pole fixes to the bottom with anchor bolts and assembled to the sensor, the pole using a small bracket.
  • In other words, the sensors must combine a bracket.
  • So, they can place side by side on the side of the pole column.
  • Please refer to the picture below for assembly status.
  •

[ Loop detector for one channel ]

  • The loop coil installs on the floor and connected to the vehicle detector.
  • And the output terminal of the detector connected with a warning light.
  • Since only one loop coil connects to the 1-channel vehicle detector.
  • It outputs when it detects a vehicle regardless of which direction the vehicle enters.

[ Loop detector for two channel ]

  • The loop coil installs on the floor and connected to the vehicle detector.
  • And the output terminal of the detector connects with a warning light.
  • Since two loop coils can connect to the 2-channel vehicle detector.
  • The vehicle detector can used individually, but the direction discrimination function and priority detection function can used.
