[ Descriptions ]
It can be conveniently installed because it can detect vehicles passing by without installing a loop coil on the road surface.
This vehicle detector without a loop coil detects metal moving in front and behind the sensor, so you need to check the installation location.
The 1-channel finished, vehicle detector can detect and output vehicles passing by within 3 meters to the side of the vehicle.
This assembly, which is composed of a circuit in an ABS waterproof housing, can be conveniently installed.
[ Specifications ]
Product : 1-channel assembly – Vehicle detector without loop coil.
Detection direction : Front and rear of the sensor.
Detection distance : Within 3 meters.
Sensitivity : 8 steps.
Timer : 8 steps.
External case : Waterproof (280(W) x 280(H) x 130(D)mm)
Sensor case : Waterproof for daily use.
Output : AC 70~240V control, relay contact output.
Operating voltage : AC 220V
Components : 1 assembled detection device, 1 sensor
Bulk order : 50, 100, 200pcs ( discount will be applied)
[ Accessories ]
Adapter: DC12V power supply for sensor
Sensor pole (small): Aluminum material and angle adjustable (height: 250mm).
Sensor pole (Midum): assembled sensor using a bracket (height: 634mm).
Bracket : 90 x 150 x 3mm (plate)
Bracket : 133 x 50 x 100mm (Adjustable)

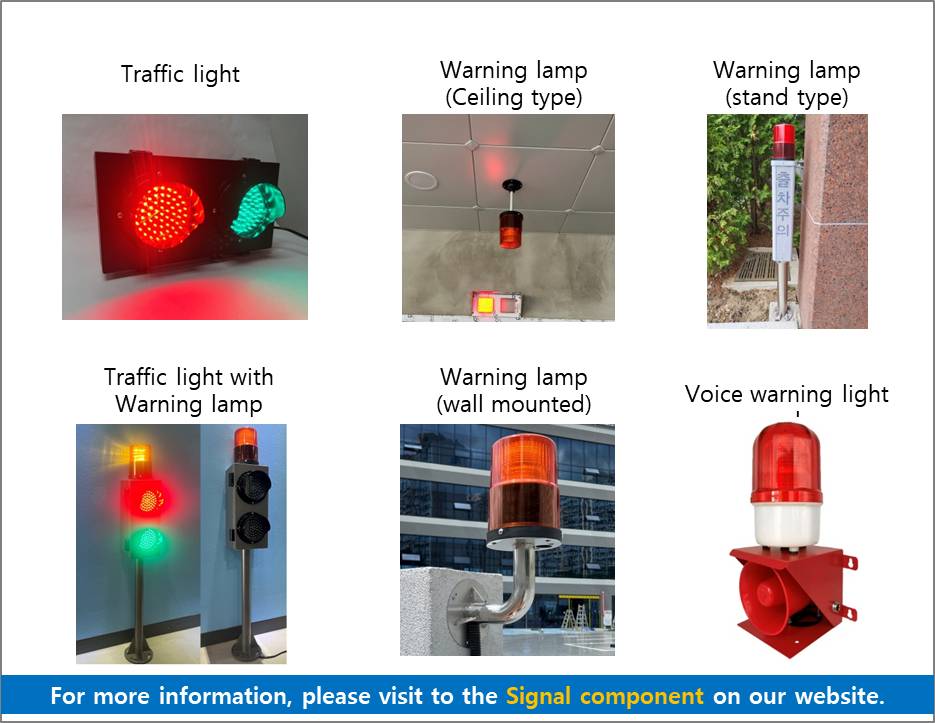

[ Warning Light and Signal ]
-
2 color- Traffic light (wall, ceiling) : Red, Green 125mm Lamp
-
2 color Traffic light (stand) : Red, Green 125mm Lamp & Warning
-
Warning light (ceiling) : 125mm lamp
-
Warning light (wall) : 125mm lamp & Bracket
-
Warning light ( stand) : 125mm lamp & warning letter display
-
Voice Warning light (wall) : 15W, 130dB
Our Business Scopes
LPR Parking System, Parking Counter System, Non-loop coil Vehicle Detector, Metal Sensor
