Non-loop coil Vehicle Detector

Play Video about Vehicle detector without loop coil

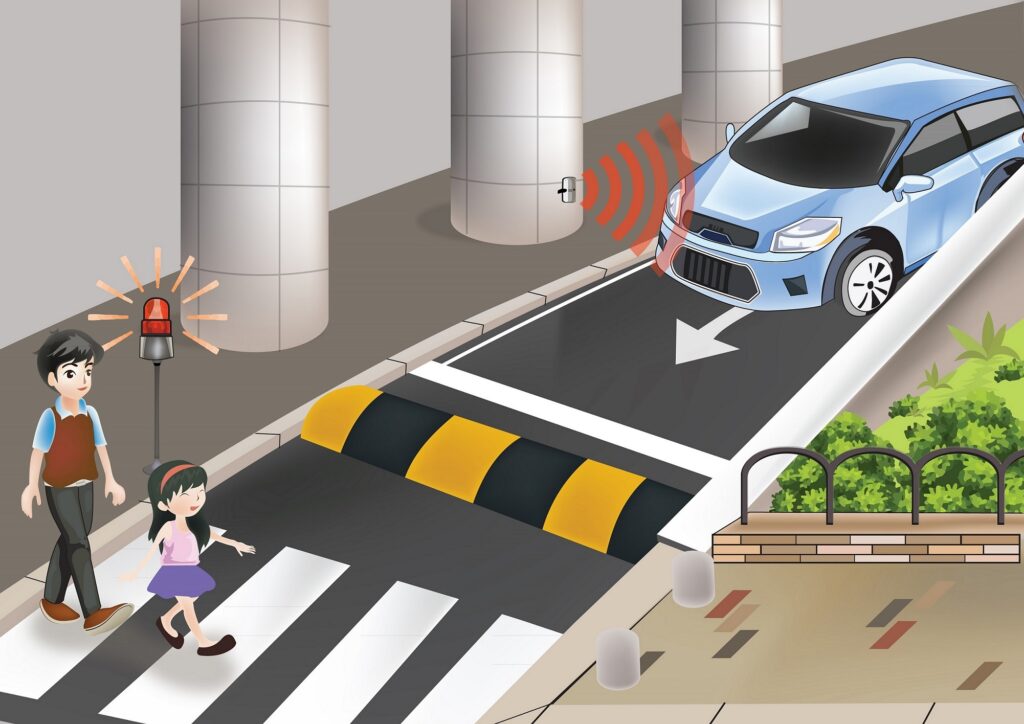

This vehicle detector, which operates without a loop coil using geomagnetic technology, detects passing vehicles, forklifts, carts or metal and alerts pedestrians or drivers nearby.

Features of non-loop coil Vehicle Detector

The existing loop coil type vehicle detectors are inconvenient to install because the loop coils must be installed in the pathway.
This vehicle detector detects passing vehicles and metals by installing sensors on walls or ceilings without installing loop coils.
It detects vehicles from both the front and back of the sensor.
It detects passing vehicles within 3 meters of the sensor.

[ 1CH- Non loop coil Vehicle Detector (model : GVD-3S) ]

Detects vehicles without loop coil for 1 channel.
Detection direction : Detects vehicles from front and rear side of the sensor
Output: 1 channel AC 70~240V control, relay dry-contact.
Components: 1 detection device, 1 sensor
Unit price: US$ 170.00
Bulk order: 50 , 100, 200pcs (discount will be applied)
Sensor Cable : 10m -> US$ 21.00, Add $10 extra for every 10 meters
Adapter : US$ 10.00

[ 1CH assembled- Non loop coil Car Detector (model : GVD-3SC) ]

Detects vehicles without loop coil for 1 channel assembly.
Detection direction : Detects vehicles from front and rear side of the sensor
Convenient installation provided with circuit configuration in waterproof ABS housing.
Output: 1 channel control – AC 70~240V, dry contact relay.
Components: 1 detection device, 1 sensor, adapter, ABS housing and circuit configuration.
Unitprice: US$ 240.00
Bulk order: 50, 100, 200pcs (discount will be applied).
Sensor Cable : 10m -> US$ 21.00, Add $10 extra for every 10 meters

[ 2CH Non-loop coil Vehicle Detector (model : GVD-3D) ]

Detect passing vehicles without loop coil.
Detection direction : Detects vehicles from front and rear side of the sensor
Provides direction determination or priority detection function.
Output: 2-channel control AC70~240V, dry-contact relay.
Components: 1 detection device, 2 sensors.
Unit price: US$ 270.00
Bulk order: 50, 100, 200pcs (discount will be applied)
Sensor Cable : 10m -> US$ 21.00, Add $10 extra for every 10 meters
Adapter : US$ 10.00

[ 2CH assembled- Non loop coil Car Detector (model : GVD-3DC) ]

2-channel assembled- vehicle detector without loop coil.
Detection direction : Detects vehicles from front and rear side of the sensor
Convenient installation provided by circuit configuration in waterproof ABS housing.
Components: 1 detection device, 2 sensors, adapter, ABS housing, and circuit configuration.
Unit price: US$ 340.00
Bulk order: 50, 100, 200pcs (discount will be applied)
Sensor Cable : 10m -> US$ 21.00, Add $10 extra for every 10 meters
